A class to hold and interpolate time series data read from a NetCDF file. More...

#include <REMORA_NCTimeSeries.H>

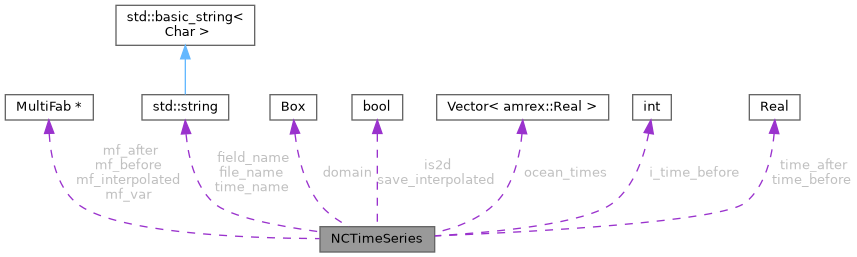

Collaboration diagram for NCTimeSeries:

[legend]

Public Member Functions
	NCTimeSeries (const std::string a_file_name, const std::string a_field_name, const std::string a_time_name, const amrex::Box &a_domain, amrex::MultiFab *a_mf_var, bool a_is2d, bool a_save_interpolated)
	Constructor.

void	Initialize ()
	Read in time array from file and allocate data arrays.

void	update_interpolated_to_time (amrex::Real time)
	Calculate interpolated values at time, reading in data as necessary.

Public Attributes
amrex::MultiFab *	mf_interpolated

Private Member Functions
void	read_in_at_time (amrex::MultiFab *mf, int itime)
	Read in data from file at time index itime and fill into mf.

Private Attributes
std::string	file_name
	File name to read from.

std::string	field_name
	Field name in netcdf file.

std::string	time_name
	Field name for time series in netcdf file.

amrex::Box	domain
	Domain.

bool	is2d
	Whether the field we're reading in is 2d.

bool	save_interpolated

amrex::Vector< amrex::Real >	ocean_times
	Time points in netcdf file.

int	i_time_before
	Time index immediately before the last time interpolated to.

amrex::Real	time_before
	Time in ocean_times immediately before the last time interpolated to.

amrex::Real	time_after
	Time in ocean_times immediately after the last time interpolated to.

amrex::MultiFab *	mf_before
	Multifab to store data at time_before.

amrex::MultiFab *	mf_after
	Multifab to store data at time_after.

amrex::MultiFab *	mf_var

Detailed Description

A class to hold and interpolate time series data read from a NetCDF file.

The class only ever holds the two time steps necessary to interpoplate to the current simulation time.

Definition at line 17 of file REMORA_NCTimeSeries.H.

Constructor & Destructor Documentation

◆ NCTimeSeries()

NCTimeSeries::NCTimeSeries	(	const std::string	a_file_name,
		const std::string	a_field_name,
		const std::string	a_time_name,
		const amrex::Box &	a_domain,
		amrex::MultiFab *	a_mf_var,
		bool	a_is2d,
		bool	a_save_interpolated
	)

Constructor.

Parameters

[in]	a_file_name	file name to read from
[in]	a_field_name	name of field to read in
[in]	a_time_name	name of time variable in NetCDF file
[in]	a_domain	simulation domain
[in,out]	a_mf_var	MultiFab of data to either store into or reference for dimensions
[in]	a_is2d	Whether the variable we're working with is 2D
[in]	a_save_interpolated	Whether the interpolated value should be saved internally

Definition at line 18 of file REMORA_NCTimeSeries.cpp.

Member Function Documentation

◆ Initialize()

void NCTimeSeries::Initialize ( )

Read in time array from file and allocate data arrays.

Definition at line 31 of file REMORA_NCTimeSeries.cpp.

Referenced by REMORA::init_only().

Here is the call graph for this function:

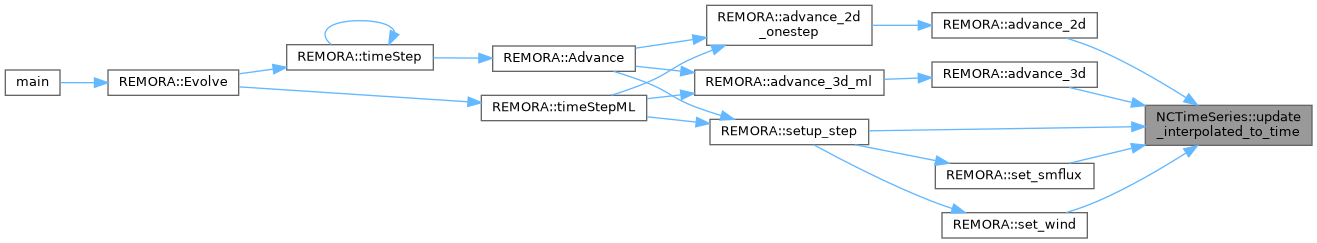

Here is the caller graph for this function:

◆ read_in_at_time()

void NCTimeSeries::read_in_at_time	(	amrex::MultiFab *	mf,
		int	itime
	)

private

Read in data from file at time index itime and fill into mf.

Parameters

[in,out]	mf	multifab to store time step data into
[in]	itime	index of time step to read from file

Definition at line 150 of file REMORA_NCTimeSeries.cpp.

Referenced by update_interpolated_to_time().

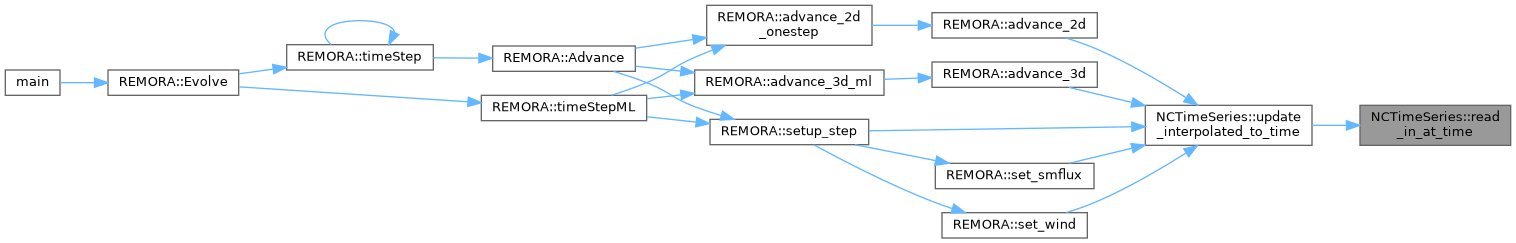

Here is the caller graph for this function:

◆ update_interpolated_to_time()

void NCTimeSeries::update_interpolated_to_time ( amrex::Real time )

Calculate interpolated values at time, reading in data as necessary.

Parameters

time	time to interpolate to

Definition at line 96 of file REMORA_NCTimeSeries.cpp.

Referenced by REMORA::advance_2d(), REMORA::advance_3d(), REMORA::set_smflux(), REMORA::set_wind(), and REMORA::setup_step().

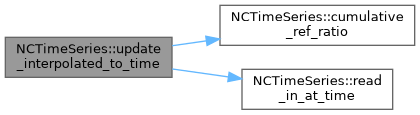

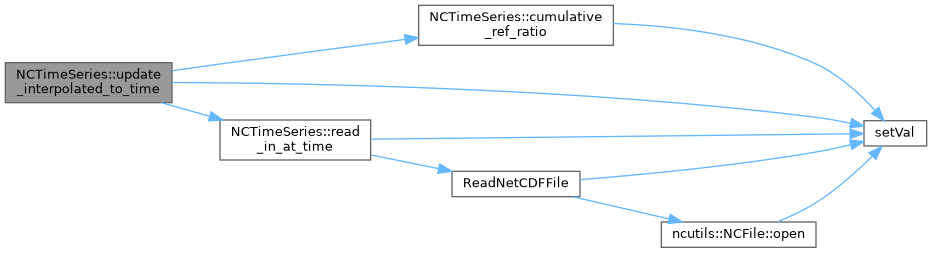

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ domain

amrex::Box NCTimeSeries::domain

private

Domain.

Definition at line 47 of file REMORA_NCTimeSeries.H.

Referenced by NCTimeSeries(), and read_in_at_time().

◆ field_name

std::string NCTimeSeries::field_name

private

Field name in netcdf file.

Definition at line 43 of file REMORA_NCTimeSeries.H.

Referenced by Initialize(), NCTimeSeries(), and read_in_at_time().

◆ file_name

std::string NCTimeSeries::file_name

private

File name to read from.

Definition at line 41 of file REMORA_NCTimeSeries.H.

Referenced by Initialize(), NCTimeSeries(), and read_in_at_time().

◆ i_time_before

int NCTimeSeries::i_time_before

private

Time index immediately before the last time interpolated to.

Definition at line 58 of file REMORA_NCTimeSeries.H.

Referenced by Initialize(), and update_interpolated_to_time().

◆ is2d

bool NCTimeSeries::is2d

private

Whether the field we're reading in is 2d.

Definition at line 50 of file REMORA_NCTimeSeries.H.

Referenced by NCTimeSeries(), and read_in_at_time().

◆ mf_after

amrex::MultiFab* NCTimeSeries::mf_after

private

Multifab to store data at time_after.

Definition at line 67 of file REMORA_NCTimeSeries.H.

Referenced by Initialize(), and update_interpolated_to_time().

◆ mf_before

amrex::MultiFab* NCTimeSeries::mf_before

private

Multifab to store data at time_before.

Definition at line 65 of file REMORA_NCTimeSeries.H.

Referenced by Initialize(), and update_interpolated_to_time().

◆ mf_interpolated

amrex::MultiFab* NCTimeSeries::mf_interpolated

Container for interpolated data; Only used if save_interpolated == true

Definition at line 35 of file REMORA_NCTimeSeries.H.

Referenced by REMORA::advance_2d(), REMORA::advance_3d(), Initialize(), REMORA::setup_step(), and update_interpolated_to_time().

◆ mf_var

amrex::MultiFab* NCTimeSeries::mf_var

private

Pointer to REMORA data that corresponds to the variable being interpolated. Filled by update_interpolated_to_time if save_interpolated==false. Otherwise, just used for getting box array, nodality, and distribution mapping

Definition at line 71 of file REMORA_NCTimeSeries.H.

Referenced by Initialize(), NCTimeSeries(), and update_interpolated_to_time().

◆ ocean_times

amrex::Vector<amrex::Real> NCTimeSeries::ocean_times

private

Time points in netcdf file.

Definition at line 56 of file REMORA_NCTimeSeries.H.

Referenced by Initialize(), and update_interpolated_to_time().

◆ save_interpolated

bool NCTimeSeries::save_interpolated

private

Whether to save interpolated results in mf_interpolated. If false, data will be calculated to mf_var

Definition at line 53 of file REMORA_NCTimeSeries.H.

Referenced by Initialize(), NCTimeSeries(), and update_interpolated_to_time().

◆ time_after

amrex::Real NCTimeSeries::time_after

private

Time in ocean_times immediately after the last time interpolated to.

Definition at line 62 of file REMORA_NCTimeSeries.H.

Referenced by update_interpolated_to_time().

◆ time_before

amrex::Real NCTimeSeries::time_before

private

Time in ocean_times immediately before the last time interpolated to.

Definition at line 60 of file REMORA_NCTimeSeries.H.

Referenced by update_interpolated_to_time().

◆ time_name

std::string NCTimeSeries::time_name

private

Field name for time series in netcdf file.

Definition at line 45 of file REMORA_NCTimeSeries.H.

Referenced by Initialize(), and NCTimeSeries().

The documentation for this class was generated from the following files:

/home/runner/work/REMORA/REMORA/Source/IO/REMORA_NCTimeSeries.H
/home/runner/work/REMORA/REMORA/Source/IO/REMORA_NCTimeSeries.cpp
