#include <REMORA_PC.H>

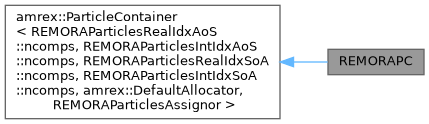

Inheritance diagram for REMORAPC:

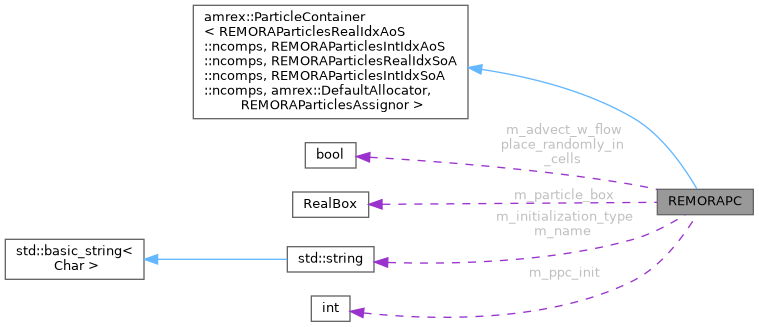

Collaboration diagram for REMORAPC:

[legend]

Public Member Functions
	REMORAPC (amrex::ParGDBBase *a_gdb, const std::string &a_name="particles")

	REMORAPC (const amrex::Geometry &a_geom, const amrex::DistributionMapping &a_dmap, const amrex::BoxArray &a_ba, const std::string &a_name="particles")

virtual void	InitializeParticles (const std::unique_ptr< amrex::MultiFab > &a_ptr=nullptr)

virtual void	EvolveParticles (int a_lev, amrex::Real a_dt_lev, amrex::Vector< amrex::MultiFab const * > &a_flow_vel, const amrex::Vector< std::unique_ptr< amrex::MultiFab > > &a_z_phys_nd)

virtual amrex::Vector< std::string >	varNames () const

virtual amrex::Vector< std::string >	meshPlotVarNames () const

virtual void	AdvectWithFlow (int a_lev, amrex::Real a_dt, amrex::Vector< amrex::MultiFab const * > &a_umac, const std::unique_ptr< amrex::MultiFab > &a_z_height)

void	WritePlotFile (const std::string &a_fname, const std::string &a_name, const amrex::Vector< amrex::MultiFab > &a_xy) const

virtual void	massDensity (amrex::MultiFab &a_mf, const int &a_lev, const int &a_comp=0) const

virtual void	computeMeshVar (const std::string &a_var_name, amrex::MultiFab &a_mf, const int a_lev) const

void	setAdvectWithFlow (bool a_flag)

void	initializeParticlesUniformDistributionInBox (const std::unique_ptr< amrex::MultiFab > &a_ptr, const amrex::RealBox &particle_box)

Protected Member Functions
virtual void	readInputs ()

Protected Attributes
bool	m_advect_w_flow

amrex::RealBox	m_particle_box

std::string	m_name

std::string	m_initialization_type

int	m_ppc_init

Private Attributes
bool	place_randomly_in_cells

Detailed Description

Definition at line 105 of file REMORA_PC.H.

Constructor & Destructor Documentation

◆ REMORAPC() [1/2]

REMORAPC::REMORAPC	(	amrex::ParGDBBase *	a_gdb,
		const std::string &	a_name = `"particles"`
	)

inline

Constructor

Definition at line 115 of file REMORA_PC.H.

Here is the call graph for this function:

◆ REMORAPC() [2/2]

REMORAPC::REMORAPC	(	const amrex::Geometry &	a_geom,
		const amrex::DistributionMapping &	a_dmap,
		const amrex::BoxArray &	a_ba,
		const std::string &	a_name = `"particles"`
	)

inline

Constructor

Definition at line 130 of file REMORA_PC.H.

Here is the call graph for this function:

Member Function Documentation

◆ AdvectWithFlow()

void REMORAPC::AdvectWithFlow	(	int	a_lev,
		amrex::Real	a_dt,
		amrex::Vector< amrex::MultiFab const * > &	a_umac,
		const std::unique_ptr< amrex::MultiFab > &	a_z_height
	)

virtual

Uses midpoint method to advance particles using flow velocity.

Parameters

a_lev	level at which to evolve particles
a_dt	time step
a_umac	flow velocities
a_z_height	z nodal positions of grid

Definition at line 37 of file REMORA_PC_Evolve.cpp.

Referenced by EvolveParticles().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeMeshVar()

virtual void REMORAPC::computeMeshVar	(	const std::string &	a_var_name,
		amrex::MultiFab &	a_mf,
		const int	a_lev
	)		const

inlinevirtual

Compute mesh variable from particles

Definition at line 183 of file REMORA_PC.H.

Here is the call graph for this function:

◆ EvolveParticles()

void REMORAPC::EvolveParticles	(	int	a_lev,
		amrex::Real	a_dt_lev,
		amrex::Vector< amrex::MultiFab const * > &	a_flow_vel,
		const amrex::Vector< std::unique_ptr< amrex::MultiFab > > &	a_z_phys_nd
	)

virtual

Evolve particles for one time step

Parameters

a_lev	level at which to evolve particles
a_dt_lev	time step
a_flow_vel	flow velocities
a_z_phys_nd	z nodal positions of grid

Definition at line 16 of file REMORA_PC_Evolve.cpp.

Here is the call graph for this function:

◆ InitializeParticles()

void REMORAPC::InitializeParticles ( const std::unique_ptr< amrex::MultiFab > & a_ptr = nullptr )

virtual

Initialize particles in domain

Definition at line 51 of file REMORA_PC_Init.cpp.

Here is the call graph for this function:

◆ initializeParticlesUniformDistributionInBox()

void REMORAPC::initializeParticlesUniformDistributionInBox	(	const std::unique_ptr< amrex::MultiFab > &	a_ptr,
		const amrex::RealBox &	particle_box
	)

Default particle initialization

Uniform distribution: the number of particles per grid cell is specified by "initial_particles_per_cell", and they are randomly distributed.

Definition at line 68 of file REMORA_PC_Init.cpp.

Referenced by InitializeParticles().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ massDensity()

void REMORAPC::massDensity	(	amrex::MultiFab &	a_mf,
		const int &	a_lev,
		const int &	a_comp = `0`
	)		const

virtual

Compute mass density

Parameters

a_mf	Multifab to calculate over
a_lev	level to calculate on
a_comp	component to calculate

Definition at line 14 of file REMORA_PC_Utils.cpp.

Referenced by computeMeshVar().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ meshPlotVarNames()

virtual amrex::Vector< std::string > REMORAPC::meshPlotVarNames ( ) const

inlinevirtual

Get real-type particle attribute names

Definition at line 163 of file REMORA_PC.H.

Here is the call graph for this function:

◆ readInputs()

void REMORAPC::readInputs ( )

protectedvirtual

read inputs from file

Definition at line 8 of file REMORA_PC_Init.cpp.

Referenced by REMORAPC(), and REMORAPC().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setAdvectWithFlow()

void REMORAPC::setAdvectWithFlow ( bool a_flag )

inline

Specify if particles should advect with flow

Definition at line 195 of file REMORA_PC.H.

Here is the call graph for this function:

◆ varNames()

virtual amrex::Vector< std::string > REMORAPC::varNames ( ) const

inlinevirtual

Get real-type particle attribute names

Definition at line 156 of file REMORA_PC.H.

Referenced by WritePlotFile().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WritePlotFile()

void REMORAPC::WritePlotFile	(	const std::string &	a_fname,
		const std::string &	a_name,
		const amrex::Vector< amrex::MultiFab > &	a_xy
	)		const

Write the particles to a plotfile with x and y in physical coordinates

Write the particles to a plotfile with x and y in physical coordinates. The particles move in the uniform coordinates of the AMReX geometry; for output, x and y are replaced by the physical coordinates of the cell corners (psi points) interpolated bilinearly to each particle. These are the corner positions the plotfile's nodal displacement gives a viewer, so each particle is drawn inside the cell that holds it. z is already the physical height. Only a copy of the particles is converted, so writing a plotfile does not change the run.

Parameters

a_fname	plotfile directory
a_name	particle species name
a_xy	per level, physical x and y of the psi points (REMORA::plot_node_coords)

Definition at line 59 of file REMORA_PC_Utils.cpp.

Here is the call graph for this function:

Member Data Documentation

◆ m_advect_w_flow

bool REMORAPC::m_advect_w_flow

protected

advect with flow velocity

Definition at line 210 of file REMORA_PC.H.

Referenced by EvolveParticles(), readInputs(), and setAdvectWithFlow().

◆ m_initialization_type

std::string REMORAPC::m_initialization_type

protected

initial particle distribution type

Definition at line 216 of file REMORA_PC.H.

Referenced by InitializeParticles(), and readInputs().

◆ m_name

std::string REMORAPC::m_name

protected

name of this particle species

Definition at line 214 of file REMORA_PC.H.

Referenced by InitializeParticles(), readInputs(), REMORAPC(), and REMORAPC().

◆ m_particle_box

amrex::RealBox REMORAPC::m_particle_box

protected

box within which to place particles

Definition at line 212 of file REMORA_PC.H.

Referenced by InitializeParticles(), and readInputs().

◆ m_ppc_init

int REMORAPC::m_ppc_init

protected

initial number of particles per cell

Definition at line 217 of file REMORA_PC.H.

Referenced by initializeParticlesUniformDistributionInBox(), and readInputs().

◆ place_randomly_in_cells

bool REMORAPC::place_randomly_in_cells

private

place particles at random positions?

Definition at line 224 of file REMORA_PC.H.

Referenced by initializeParticlesUniformDistributionInBox(), and readInputs().

The documentation for this class was generated from the following files:

/home/runner/work/REMORA/REMORA/Source/Particles/REMORA_PC.H
/home/runner/work/REMORA/REMORA/Source/Particles/REMORA_PC_Evolve.cpp
/home/runner/work/REMORA/REMORA/Source/Particles/REMORA_PC_Init.cpp
/home/runner/work/REMORA/REMORA/Source/Particles/REMORA_PC_Utils.cpp
