#include <REMORA_FillPatcher.H>

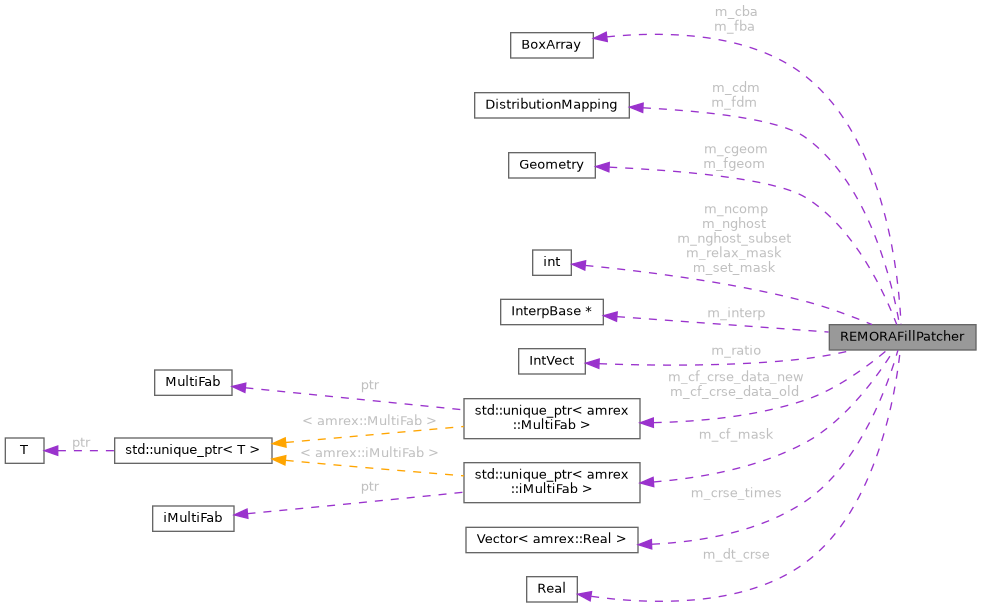

Collaboration diagram for REMORAFillPatcher:

[legend]

Public Member Functions
	REMORAFillPatcher (amrex::BoxArray const &fba, amrex::DistributionMapping const &fdm, amrex::Geometry const &fgeom, amrex::BoxArray const &cba, amrex::DistributionMapping const &cdm, amrex::Geometry const &cgeom, int nghost, int nghost_set, int ncomp, amrex::InterpBase *interp)
	Fill valid and ghost data with the "state data" at the given time.

void	Define (amrex::BoxArray const &fba, amrex::DistributionMapping const &fdm, amrex::Geometry const &fgeom, amrex::BoxArray const &cba, amrex::DistributionMapping const &cdm, amrex::Geometry const &cgeom, int nghost, int nghost_set, int ncomp, amrex::InterpBase *interp)
	Redefine the coarse and fine patch MultiFabs.

void	BuildMask (amrex::BoxArray const &fba, int nghost, int nghost_set)
	Generate masking array.

void	RegisterCoarseData (amrex::Vector< amrex::MultiFab const * > const &crse_data, amrex::Vector< amrex::Real > const &crse_time)
	Register the coarse data to be used by the REMORAFillPatcher.

void	InterpFace (amrex::MultiFab &fine, amrex::MultiFab const &crse, int mask_val)
	Interpolate to cell faces.

void	InterpCell (amrex::MultiFab &fine, amrex::MultiFab const &crse, amrex::Vector< amrex::BCRec > const &bcr, int mask_val)
	Interpolate to cell centers.

int	GetSetMaskVal ()

int	GetRelaxMaskVal ()

amrex::iMultiFab *	GetMask ()

template<typename BC >
void	FillSet (amrex::MultiFab &mf, amrex::Real time, BC &cbc, amrex::Vector< amrex::BCRec > const &bcs)
	Fill fine data in the set region.

template<typename BC >
void	FillRelax (amrex::MultiFab &mf, amrex::Real time, BC &cbc, amrex::Vector< amrex::BCRec > const &bcs)
	Fill fine data in the relax region.

template<typename BC >
void	Fill (amrex::MultiFab &mf, amrex::Real time, BC &cbc, amrex::Vector< amrex::BCRec > const &bcs, int mask_val)
	Fill fine data in the relax region.

Private Attributes
amrex::BoxArray	m_fba

amrex::BoxArray	m_cba

amrex::DistributionMapping	m_fdm

amrex::DistributionMapping	m_cdm

amrex::Geometry	m_fgeom

amrex::Geometry	m_cgeom

int	m_nghost

int	m_nghost_subset

int	m_ncomp

amrex::InterpBase *	m_interp

amrex::IntVect	m_ratio

std::unique_ptr< amrex::MultiFab >	m_cf_crse_data_old

std::unique_ptr< amrex::MultiFab >	m_cf_crse_data_new

std::unique_ptr< amrex::iMultiFab >	m_cf_mask

amrex::Vector< amrex::Real >	m_crse_times

amrex::Real	m_dt_crse

int	m_set_mask {2}

int	m_relax_mask {1}

Detailed Description

Definition at line 8 of file REMORA_FillPatcher.H.

Constructor & Destructor Documentation

◆ REMORAFillPatcher()

REMORAFillPatcher::REMORAFillPatcher	(	amrex::BoxArray const &	fba,
		amrex::DistributionMapping const &	fdm,
		amrex::Geometry const &	fgeom,
		amrex::BoxArray const &	cba,
		amrex::DistributionMapping const &	cdm,
		amrex::Geometry const &	cgeom,
		int	nghost,
		int	nghost_set,
		int	ncomp,
		amrex::InterpBase *	interp
	)

Fill valid and ghost data with the "state data" at the given time.

Parameters

[in]	fba	BoxArray of data to be filled at fine level
[in]	fdm	DistributionMapping of data to be filled at fine level
[in]	fgeom	container of geometry information at fine level
[in]	cba	BoxArray of data to be filled at coarse level
[in]	cdm	DistributionMapping of data to be filled at coarse level
[in]	cgeom	container of geometry information at coarse level
[in]	nghost	number of ghost cells to be filled
[in]	ncomp	number of components to be filled
[in]	interp	interpolation operator to be used

Definition at line 19 of file REMORA_FillPatcher.cpp.

Here is the call graph for this function:

Member Function Documentation

◆ BuildMask()

void REMORAFillPatcher::BuildMask	(	amrex::BoxArray const &	fba,
		int	nghost,
		int	nghost_set
	)

Generate masking array.

Definition at line 115 of file REMORA_FillPatcher.cpp.

Referenced by Define().

Here is the caller graph for this function:

◆ Define()

void REMORAFillPatcher::Define	(	amrex::BoxArray const &	fba,
		amrex::DistributionMapping const &	fdm,
		amrex::Geometry const &	fgeom,
		amrex::BoxArray const &	cba,
		amrex::DistributionMapping const &	cdm,
		amrex::Geometry const &	cgeom,
		int	nghost,
		int	nghost_set,
		int	ncomp,
		amrex::InterpBase *	interp
	)

Redefine the coarse and fine patch MultiFabs.

Parameters

[in]	fba	BoxArray of data to be filled at fine level
[in]	fdm	DistributionMapping of data to be filled at fine level
[in]	fgeom	container of geometry information at fine level
[in]	cba	BoxArray of data to be filled at coarse level
[in]	cdm	DistributionMapping of data to be filled at coarse level
[in]	cgeom	container of geometry information at coarse level
[in]	nghost	number of ghost cells to be filled
[in]	ncomp	number of components to be filled
[in]	interp	interpolation operator to be used

Definition at line 53 of file REMORA_FillPatcher.cpp.

Referenced by REMORAFillPatcher().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Fill()

template<typename BC >

void REMORAFillPatcher::Fill	(	amrex::MultiFab &	mf,
		amrex::Real	time,
		BC &	cbc,
		amrex::Vector< amrex::BCRec > const &	bcs,
		int	mask_val
	)

Fill fine data in the relax region.

Parameters

[out]	mf	MultiFab to be filled
[in]	time	Time at which to fill data
[in]	cbc	Coarse boundary condition
[in]	bcs	Vector of boundary conditions
[in]	mask_val	Value to assign mask array

Definition at line 124 of file REMORA_FillPatcher.H.

Referenced by FillRelax(), and FillSet().

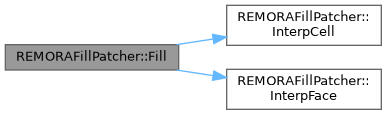

Here is the call graph for this function:

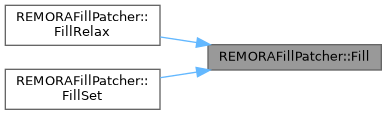

Here is the caller graph for this function:

◆ FillRelax()

template<typename BC >

void REMORAFillPatcher::FillRelax	(	amrex::MultiFab &	mf,
		amrex::Real	time,
		BC &	cbc,
		amrex::Vector< amrex::BCRec > const &	bcs
	)

Fill fine data in the relax region.

Parameters

[out]	mf	MultiFab to be filled
[in]	time	Time at which to fill data
[in]	cbc	Coarse boundary condition
[in]	bcs	Vector of boundary conditions

Definition at line 109 of file REMORA_FillPatcher.H.

Here is the call graph for this function:

◆ FillSet()

template<typename BC >

void REMORAFillPatcher::FillSet	(	amrex::MultiFab &	mf,
		amrex::Real	time,
		BC &	cbc,
		amrex::Vector< amrex::BCRec > const &	bcs
	)

Fill fine data in the set region.

Parameters

[out]	mf	MultiFab to be filled
[in]	time	Time at which to fill data
[in]	cbc	Coarse boundary condition
[in]	bcs	Vector of boundary conditions

Definition at line 95 of file REMORA_FillPatcher.H.

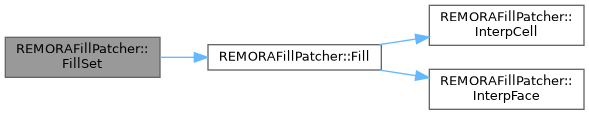

Here is the call graph for this function:

◆ GetMask()

amrex::iMultiFab * REMORAFillPatcher::GetMask ( )

inline

Definition at line 49 of file REMORA_FillPatcher.H.

◆ GetRelaxMaskVal()

int REMORAFillPatcher::GetRelaxMaskVal ( )

inline

Definition at line 47 of file REMORA_FillPatcher.H.

◆ GetSetMaskVal()

int REMORAFillPatcher::GetSetMaskVal ( )

inline

Definition at line 45 of file REMORA_FillPatcher.H.

◆ InterpCell()

void REMORAFillPatcher::InterpCell	(	amrex::MultiFab &	fine,
		amrex::MultiFab const &	crse,
		amrex::Vector< amrex::BCRec > const &	bcr,
		int	mask_val
	)

Interpolate to cell centers.

Parameters

[in,out]	fine	fine level data
[in]	crse	coarse level data
[in]	bcr	boundary condition type
[in]	mask_val	masked value

Definition at line 333 of file REMORA_FillPatcher.cpp.

Referenced by Fill().

Here is the caller graph for this function:

◆ InterpFace()

void REMORAFillPatcher::InterpFace	(	amrex::MultiFab &	fine,
		amrex::MultiFab const &	crse,
		int	mask_val
	)

Interpolate to cell faces.

Parameters

[in,out]	fine	fine level data
[in]	crse	coarse level data
[in]	mask_val	masked value

Definition at line 209 of file REMORA_FillPatcher.cpp.

Referenced by Fill().

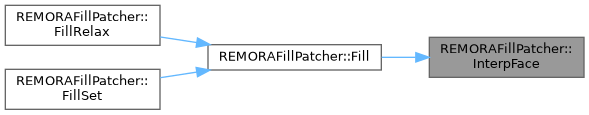

Here is the caller graph for this function:

◆ RegisterCoarseData()

void REMORAFillPatcher::RegisterCoarseData	(	amrex::Vector< amrex::MultiFab const * > const &	crse_data,
		amrex::Vector< amrex::Real > const &	crse_time
	)

Register the coarse data to be used by the REMORAFillPatcher.

Definition at line 180 of file REMORA_FillPatcher.cpp.

Member Data Documentation

◆ m_cba

amrex::BoxArray REMORAFillPatcher::m_cba

private

Definition at line 68 of file REMORA_FillPatcher.H.

Referenced by Define().

◆ m_cdm

amrex::DistributionMapping REMORAFillPatcher::m_cdm

private

Definition at line 70 of file REMORA_FillPatcher.H.

Referenced by Define().

◆ m_cf_crse_data_new

std::unique_ptr<amrex::MultiFab> REMORAFillPatcher::m_cf_crse_data_new

private

Definition at line 79 of file REMORA_FillPatcher.H.

Referenced by Define(), Fill(), and RegisterCoarseData().

◆ m_cf_crse_data_old

std::unique_ptr<amrex::MultiFab> REMORAFillPatcher::m_cf_crse_data_old

private

Definition at line 78 of file REMORA_FillPatcher.H.

Referenced by Define(), Fill(), and RegisterCoarseData().

◆ m_cf_mask

std::unique_ptr<amrex::iMultiFab> REMORAFillPatcher::m_cf_mask

private

Definition at line 80 of file REMORA_FillPatcher.H.

Referenced by BuildMask(), Define(), GetMask(), InterpCell(), and InterpFace().

◆ m_cgeom

amrex::Geometry REMORAFillPatcher::m_cgeom

private

Definition at line 72 of file REMORA_FillPatcher.H.

Referenced by Define(), InterpCell(), InterpFace(), and RegisterCoarseData().

◆ m_crse_times

amrex::Vector<amrex::Real> REMORAFillPatcher::m_crse_times

private

Definition at line 81 of file REMORA_FillPatcher.H.

Referenced by Fill(), RegisterCoarseData(), and REMORAFillPatcher().

◆ m_dt_crse

amrex::Real REMORAFillPatcher::m_dt_crse

private

Definition at line 82 of file REMORA_FillPatcher.H.

Referenced by Fill(), and RegisterCoarseData().

◆ m_fba

amrex::BoxArray REMORAFillPatcher::m_fba

private

Definition at line 67 of file REMORA_FillPatcher.H.

Referenced by Define().

◆ m_fdm

amrex::DistributionMapping REMORAFillPatcher::m_fdm

private

Definition at line 69 of file REMORA_FillPatcher.H.

Referenced by Define().

◆ m_fgeom

amrex::Geometry REMORAFillPatcher::m_fgeom

private

Definition at line 71 of file REMORA_FillPatcher.H.

Referenced by Define(), and InterpCell().

◆ m_interp

amrex::InterpBase* REMORAFillPatcher::m_interp

private

Definition at line 76 of file REMORA_FillPatcher.H.

Referenced by Define(), and InterpCell().

◆ m_ncomp

int REMORAFillPatcher::m_ncomp

private

Definition at line 75 of file REMORA_FillPatcher.H.

Referenced by Define(), Fill(), InterpCell(), InterpFace(), and RegisterCoarseData().

◆ m_nghost

int REMORAFillPatcher::m_nghost

private

Definition at line 73 of file REMORA_FillPatcher.H.

Referenced by Define().

◆ m_nghost_subset

int REMORAFillPatcher::m_nghost_subset

private

Definition at line 74 of file REMORA_FillPatcher.H.

Referenced by Define().

◆ m_ratio

amrex::IntVect REMORAFillPatcher::m_ratio

private

Definition at line 77 of file REMORA_FillPatcher.H.

Referenced by Define(), InterpCell(), and InterpFace().

◆ m_relax_mask

int REMORAFillPatcher::m_relax_mask {1}

private

Definition at line 84 of file REMORA_FillPatcher.H.

Referenced by Define(), FillRelax(), and GetRelaxMaskVal().

◆ m_set_mask

int REMORAFillPatcher::m_set_mask {2}

private

Definition at line 83 of file REMORA_FillPatcher.H.

Referenced by Define(), FillSet(), and GetSetMaskVal().

The documentation for this class was generated from the following files:

/home/runner/work/REMORA/REMORA/Source/BoundaryConditions/REMORA_FillPatcher.H
/home/runner/work/REMORA/REMORA/Source/BoundaryConditions/REMORA_FillPatcher.cpp

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ REMORAFillPatcher()

Member Function Documentation

◆ BuildMask()

◆ Define()

◆ Fill()

◆ FillRelax()

◆ FillSet()

◆ GetMask()

◆ GetRelaxMaskVal()

◆ GetSetMaskVal()

◆ InterpCell()

◆ InterpFace()

◆ RegisterCoarseData()

Member Data Documentation

◆ m_cba

◆ m_cdm

◆ m_cf_crse_data_new

◆ m_cf_crse_data_old

◆ m_cf_mask

◆ m_cgeom

◆ m_crse_times

◆ m_dt_crse

◆ m_fba

◆ m_fdm

◆ m_fgeom

◆ m_interp

◆ m_ncomp

◆ m_nghost

◆ m_nghost_subset

◆ m_ratio

◆ m_relax_mask

◆ m_set_mask
